3.2V 334Ah LiFePO4 Battery Cell Prismatic Deep Cycle Lithium Iron Phosphate for DIY Solar RV Marine Golf Cart Storage

Product Categories

Deligreen Power Co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : EVE

Model Number : 3.2V 334AH

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1pc

Supply Ability : 10000 pcs/day

Delivery Time : 15 working days

Min. Capacity : 334Ah

Typical Voltage : 3.2V

Initial IR : 0.18 mΩ ± 0.05 mΩ

Cut Off Voltage Of Charge : 3.65 V

Cut Off Voltage Of Discharge : 2.5 V

Max Constant Charge Current : 2C, 668A for 30s

Max Constant discharge current : 3C, 1002A for 30s

Standard Charging Current : 1C, 334A

Weight : 5.5kg

Cell size : 72*174*204mm

Contact Now

EVE 334Ah Grade A LiFePO₄ Battery Cell

High capacity, long cycle life prismatic lithium iron phosphate cell for electric vehicles and energy storage applications.

Technical Specifications

Specification	Value
Minimum Capacity	334Ah
Typical Voltage	3.2V
Initial Internal Resistance	0.18 mΩ ± 0.05 mΩ
Charge Cut-off Voltage	3.65V
Discharge Cut-off Voltage	2.5V
Max Constant Charge Current	2C, 668A for 30s
Max Constant Discharge Current	3C, 1002A for 30s
Standard Charging Current	1C, 334A
Weight	5.5kg

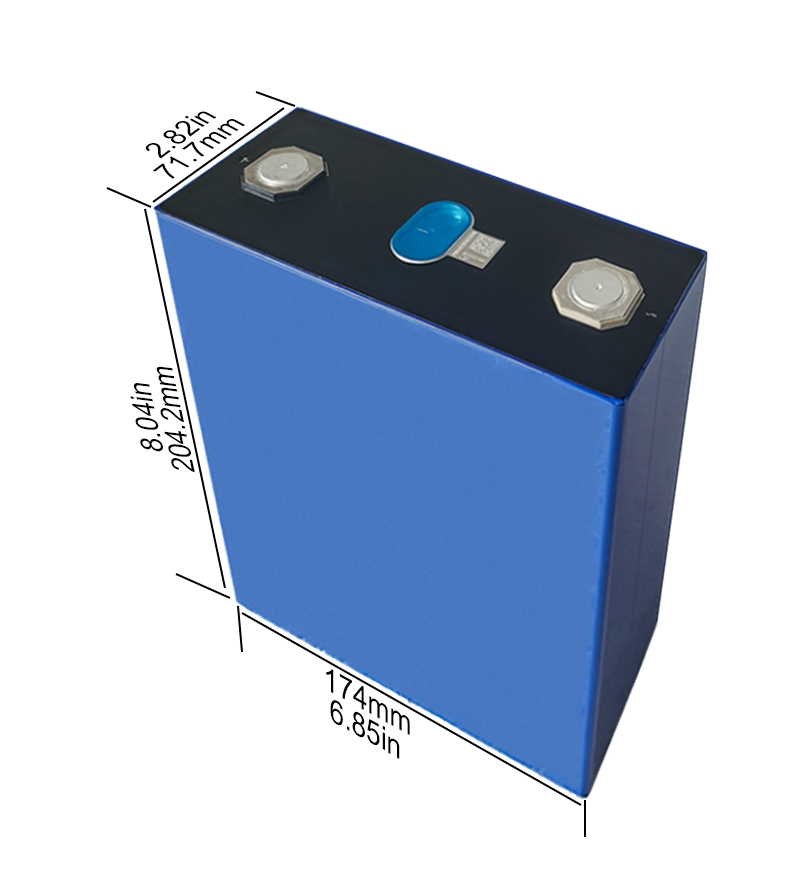

Cell Dimensions	72 × 174 × 204mm

Key Advantages

High Energy Density 334Ah capacity in compact prismatic design maximizes space utilization and reduces overall system weight
Consistent Performance Stable voltage platform, low self-discharge rate, and excellent high-temperature tolerance for reliable operation
Safety First LiFePO₄ chemistry provides inherent safety with no thermal runaway risk

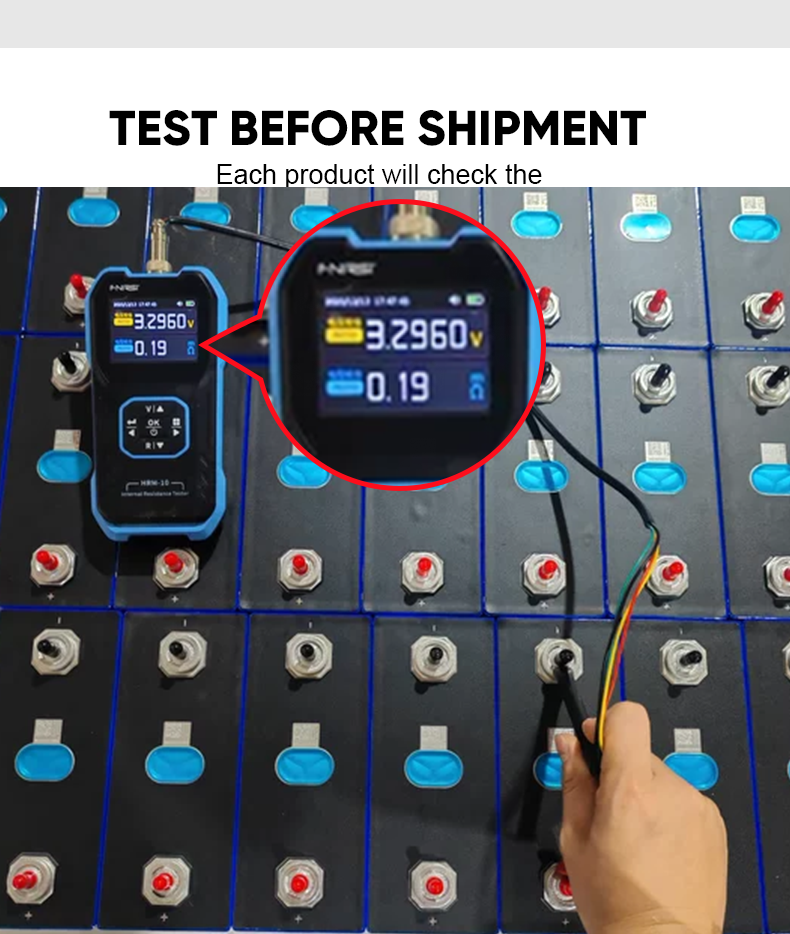

Grade A Certified Direct from EVE factory with full traceability via QR code and 100% factory testing

Applications

Electric Vehicles - Passenger EVs, commercial vehicles, and electric buses
Marine & RV - Electric boats, yachts, and recreational vehicles
Industrial Equipment - AGVs, forklifts, and heavy machinery
Large-Scale Energy Storage - ESS, solar farms, peak shaving, and grid support
Commercial & Industrial Backup - UPS systems, telecom backup, and industrial power
